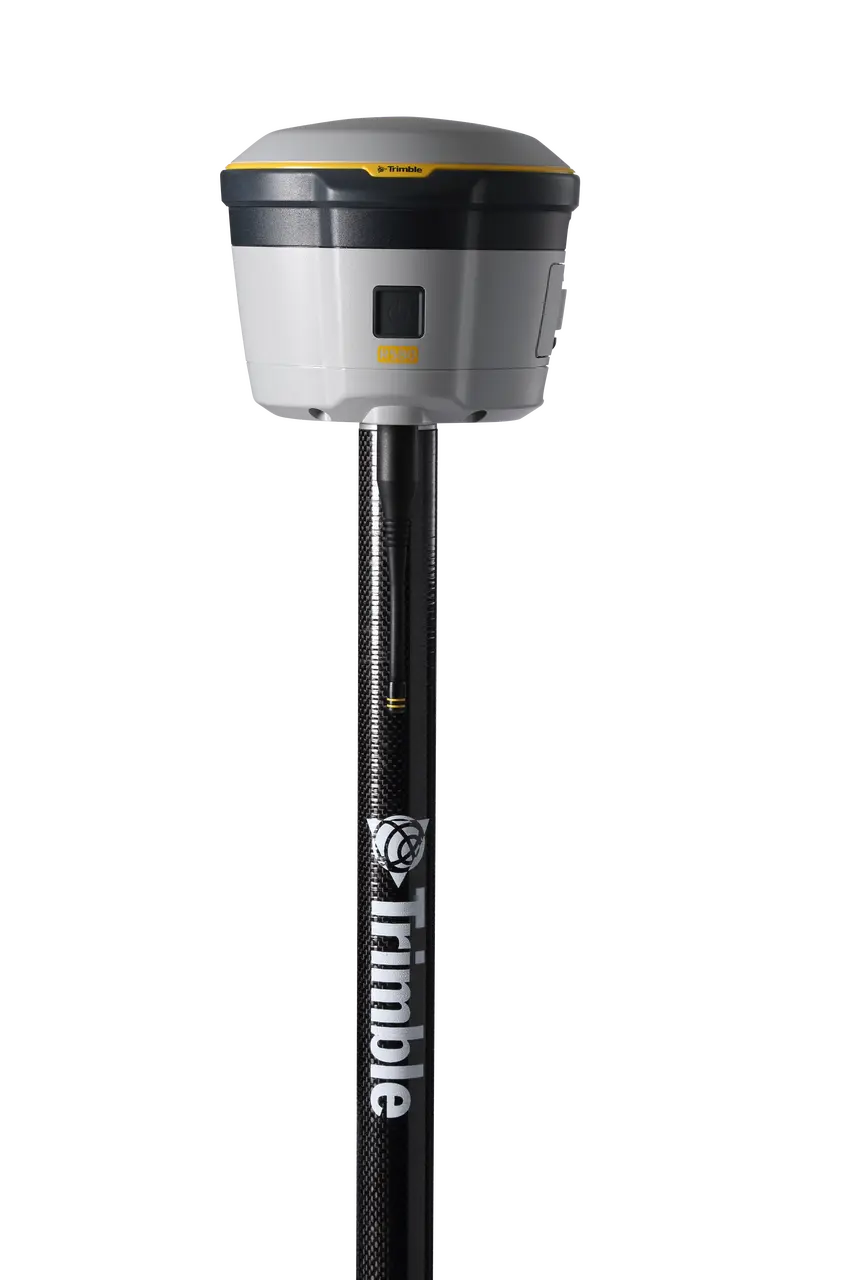

Trimble R580 GNSS Smart Antenna with TSC5

The Trimble R580 GNSS Smart Antenna is a budget-friendly, high-precision tool for construction and surveying. It combines Trimble’s advanced GNSS technology with a tough, easy-to-use design. The R580 provides reliable accuracy in tough conditions, making it an excellent choice for those wanting performance without a high price.

“The R580 adds top Trimble ProPoint features in various forms across Trimble’s GNSS receiver lineup. This allows users to choose effective receivers. They can select based on their application, project needs, and team size.

Chris Trevillian, the director of product management at Trimble Geospatial, made this statement.

For a visual overview and comparison with other Trimble Smart Antennas, you may find the following video informative:

Key Features

• Trimble ProPoint® GNSS Engine: Delivers top performance in tough GNSS conditions. This includes places with thick tree cover or city obstacles.
• Trimble Maxwell™ 7 Chipset: This chipset enables fast processing, anti-spoofing capabilities, and tracking of all current and emerging GNSS constellations for enhanced positioning accuracy.
• Trimble EVEREST™ Plus: Mitigates multipath errors by identifying and removing unwanted signals, ensuring data integrity.
• Trimble CenterPoint® RTX provides real-time corrections through satellite or the internet. It achieves RTK-level accuracy without needing a local base station.
• Rugged Design: Built to withstand harsh field conditions with an IP65 rating and MIL-STD-810G certification.
• Seamless Integration: Compatible with Trimble Siteworks Software and hardware, allowing streamlined workflows across the job site.

A complete Trimble solution

• Connect to a Trimble survey controller via Bluetooth and access Trimble field and office workflows.
• Collect data easily with Trimble Access or Trimble Terraflex, and communicate from field to office
• Process the field data with Trimble Business Center or Trimble Terra Office to create high-quality deliverable.

Advantages

• Affordability: Provides a budget-friendly option for professionals seeking high-precision GNSS capabilities without compromising on quality.
• Enhanced Productivity: Quick setup and reliable performance reduce downtime, enabling more efficient field operations.
• Versatility: Suitable for various applications, including grade checking, stakeout, as-built measurements, and material stockpile assessments.
• Ease of Use: Designed for straightforward operation, making it accessible to users with varying experience levels.

Applications

The Trimble Siteworks Positioning System with the R580 is ideal for:

• Grade checkers, construction surveyors, supervisors, forepersons
• Grade checking and navigating to points
• Recording features with attributes, images, and volumes
• Simple positioning tasks
• Carrying out as-built measurements

Technical Information

The R580 provides better accuracy in many environments. It uses the reliable Trimble Maxwell™ 7 chipset technology.

This technology allows for fast processing and anti-spoofing features. It can also track all available GNSS satellite constellations. That means more system uptime and more productivity for job crews.

The R580 uses the top Trimble ProPoint® GNSS technology. It works with these satellite systems and correction sources:

• GPS, GLONASS, Galileo, QZSS, and BeiDou Navigation Satellite System
• CenterPoint RTX
• Satellite-Based Augmentation Systems (SBAS) such as WAAS, EGNOS, MSAS, and QZSS
• RTK using UHF radio links (CMRx /RTCM)
• Virtual Reference Station (VRS)

Current Trimble Civil Construction software and firmware versions

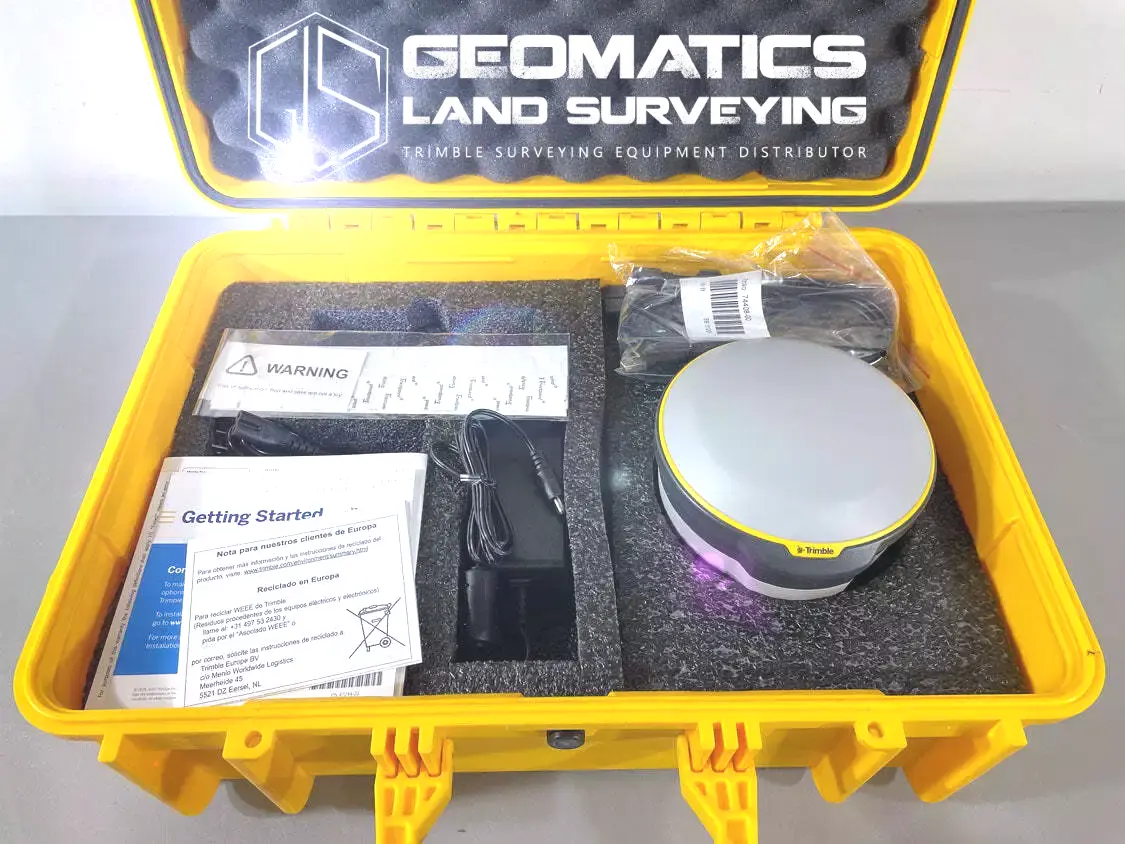

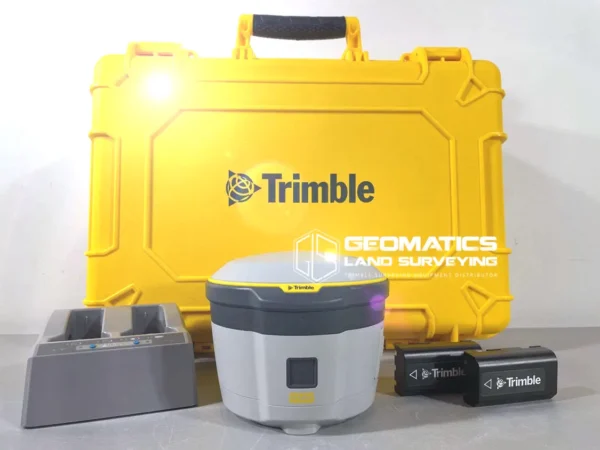

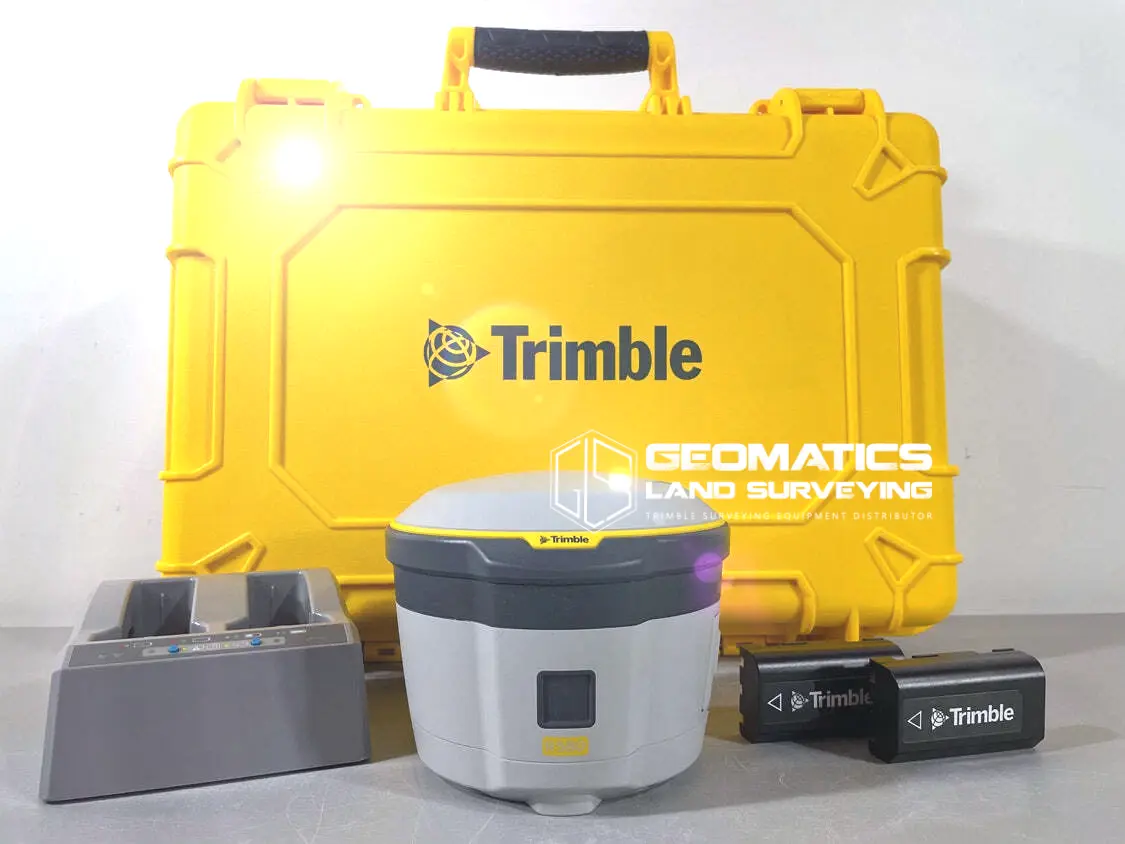

What’s Included

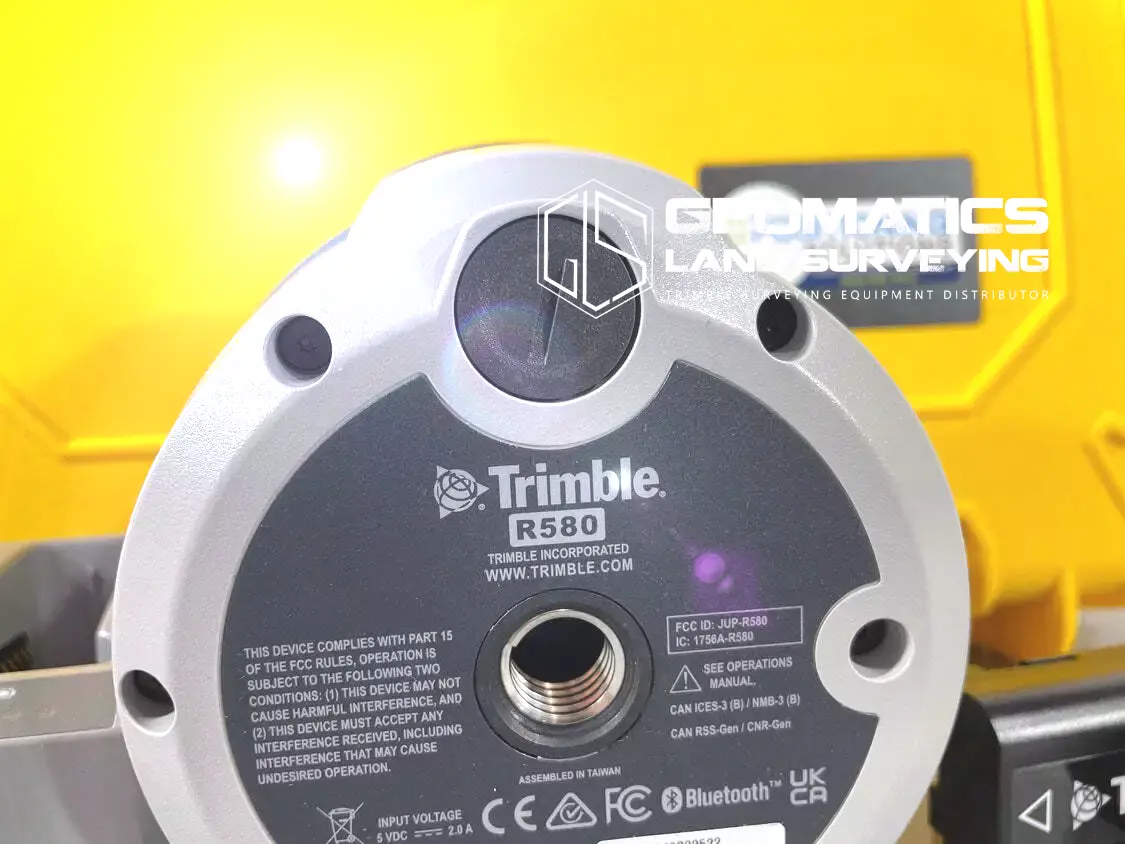

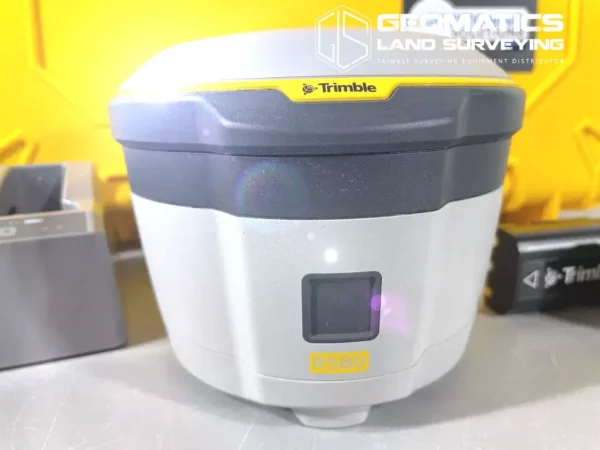

• Trimble R580 GNSS Smart Antenna
• Integrated GNSS receiver, antenna, radio, and battery
• 12-month subscription to Trimble CenterPoint® RTX correction service
• Quick Start Guide and warranty documentation
• Transport case
•  R580 GNSS receiver with RTX Rover options
  • Dual bay charger
  • Batteries x 2
  • Receiver transport case (generic)

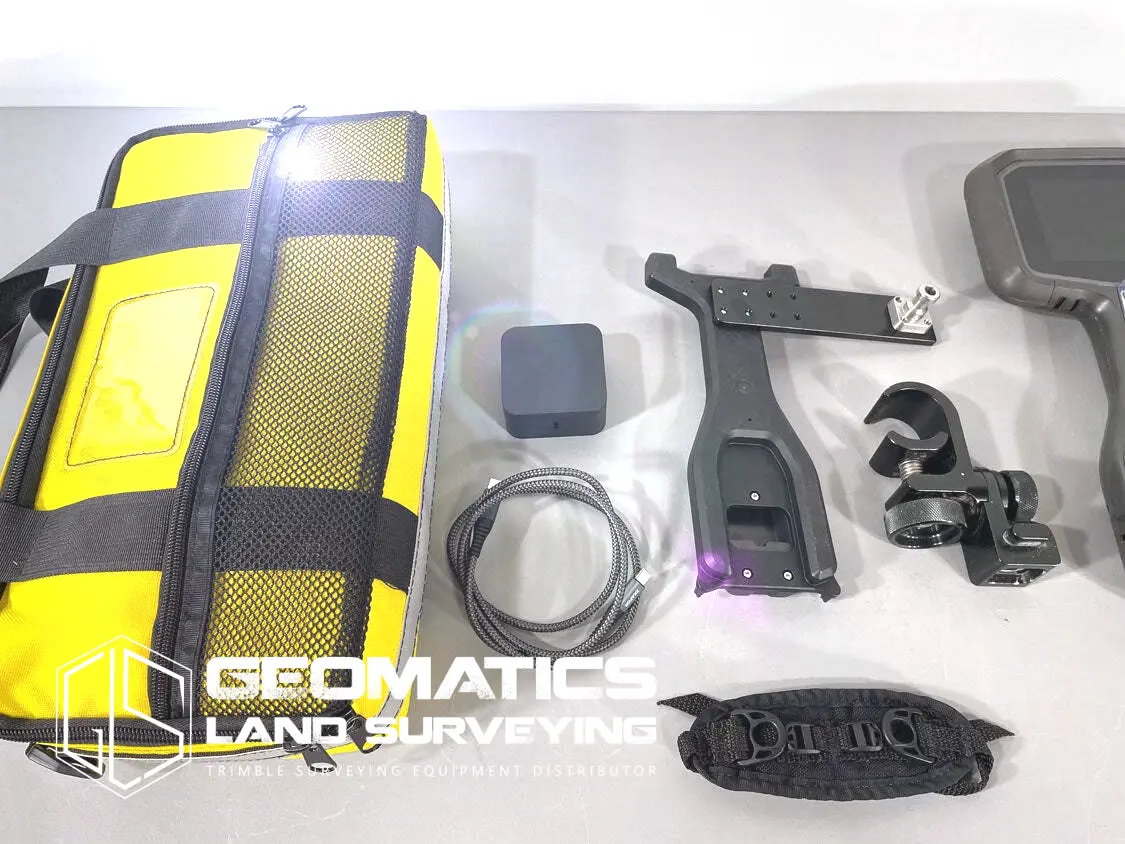

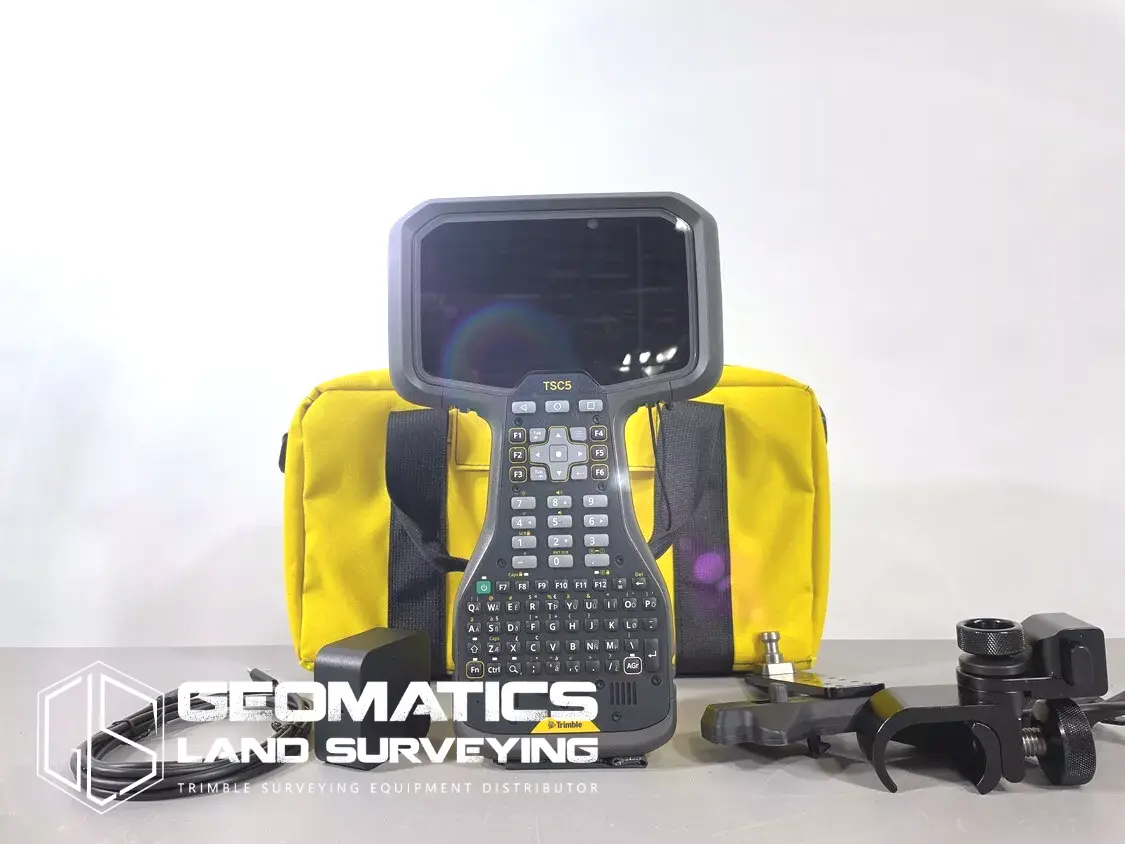

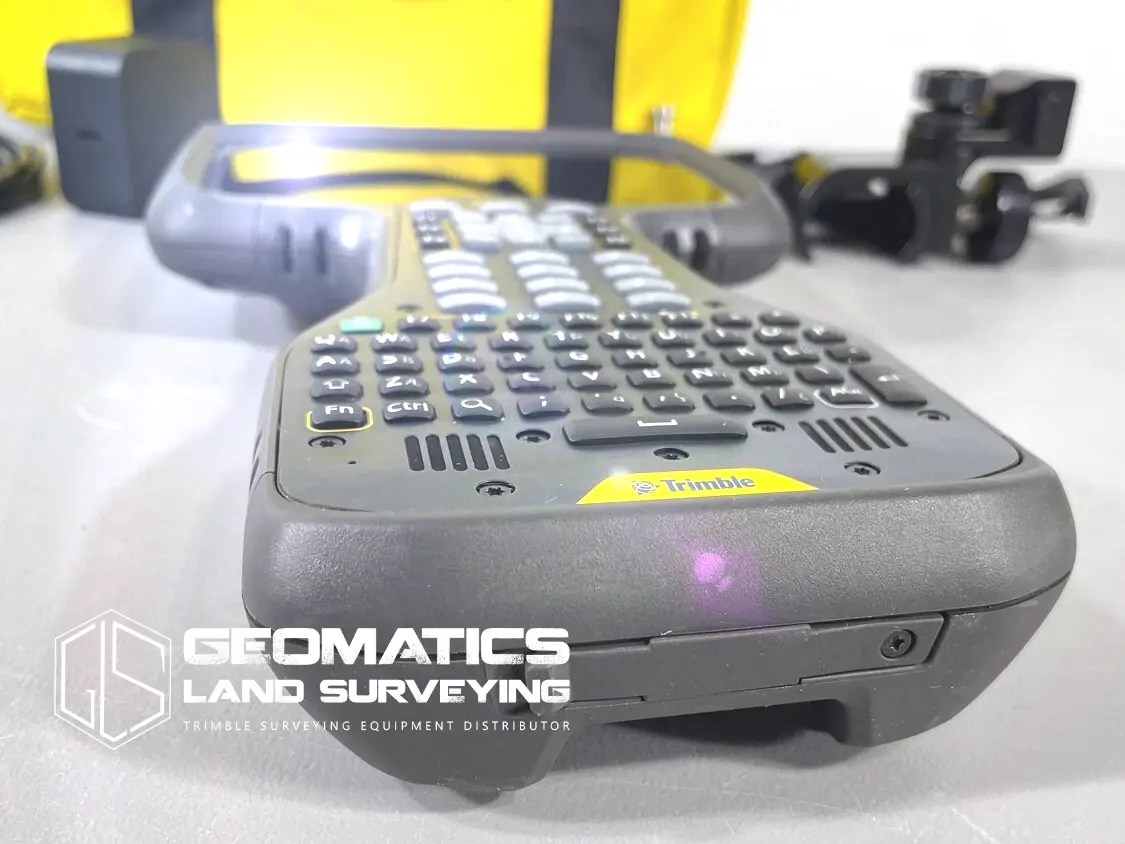

•  TSC5 with Access perpetual license
  • TSC5 charger (US)
  • TSC5 pole bracket & cradle
  • TSC5 soft case

• Seco survey pole with quick release (5128-00-QR)
• Seco bipod (5217-04-YEL)

Configuration: This R580 is a GNSS rover receiver with GPS, GLO, GAL, BED, and triple-frequency tracking (L5). It includes a 12-month subscription to Trimble’s RTX service. The TSC5 is running Trimble Access software.

Radio: This unit is ready for RTX / VRS.  An optional upgrade is available to enable the internal UHF radio

Condition: New, open box / excellent condition.

Warranty: 12-month factory warranty.

In Summary, the Trimble R580 GNSS Smart Antenna is a reliable and economical solution for professionals requiring precise positioning in challenging environments. Its mix of advanced GNSS technology, strong design, and easy-to-use features makes it a great tool for construction or surveying.
